Vortex inhibitor (Anti-vortex plate)
- Certificate: ISO
- Standard: EN 12845, NFPA 20 / 22, GB 50974
- Material: SS304, SS316, etc.
- Connection: Flanged as ANSI B16.5 Class 150, EN 1092-1 PN16
- Temperature: 0°C to 120°C, water
- W. pressure: 300 psi
- Effective level: Min 100 mm
- Installation: Up and down, both available
- Surface: Rough SS / red painting
INQUIRY
Why Choose Us?
- Satisfaction Guaranteed
- No Hassle For Return
- Cash on Delivery
Description

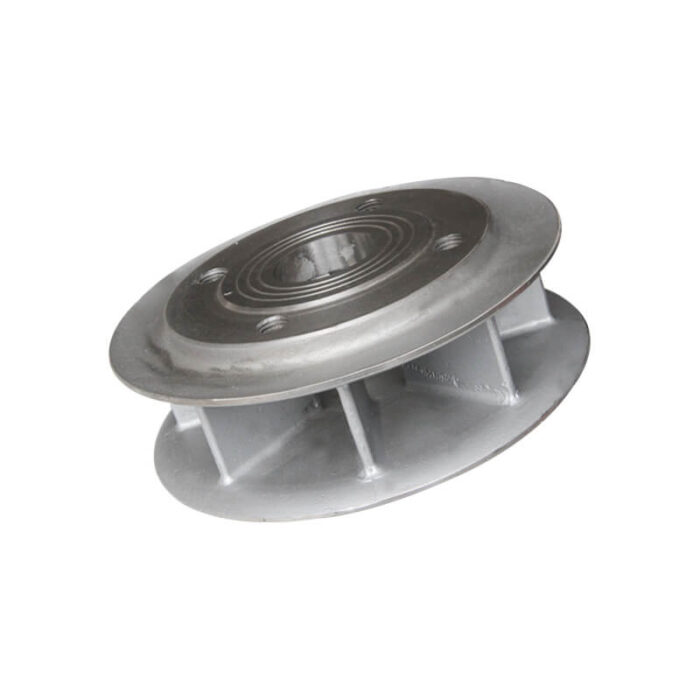

Vortex inhibitor is fitted at the inlet of suction pipe in the suction tank. It reduces vortices and dead water area, minimize the air entrainment into the pump pipeline, so to ensure the pump & tank working at its max efficiency.
Available Size (Without accessories)
| Size | Accessories | Connection | Working pressure (psi) | Ref.No. |
|---|---|---|---|---|
| 2″ / DN50 | / | Class 150 / PN16 | 300 | U5101 |
| 2-1/2″ / DN65 | / | Class 150 / PN16 | 300 | U5102 |
| 3″ / DN80 | / | Class 150 / PN16 | 300 | U5103 |
| 4″ / DN100 | / | Class 150 / PN16 | 300 | U5104 |
| 6″ / DN150 | / | Class 150 / PN16 | 300 | U5105 |
| 8″ / DN200 | / | Class 150 / PN16 | 300 | U5106 |
| 10″ / DN250 | / | Class 150 / PN16 | 300 | U5107 |
| 12″ / DN300 | / | Class 150 / PN16 | 300 | U5108 |
| 14″ / DN350 | / | Class 150 / PN16 | 300 | U5109 |
| 16″ / DN400 | / | Class 150 / PN16 | 300 | U5110 |
| 18″ / DN450 | / | Class 150 / PN16 | 300 | U5111 |
| 20″ / DN500 | / | Class 150 / PN16 | 300 | U5112 |
Note: For flanged connection, it is available with ANSI B16.1 Class 125 / 250, B16.42 Class 150 / 300, EN 1092-2 PN10 / PN16 / PN25, etc.
Available Size (With accessories)
| Size | Accessories | Connection | Working pressure (psi) | Ref.No. |
|---|---|---|---|---|
| 2″ / DN50 | Yes | Class 150 / PN16 | 300 | U5121 |
| 2-1/2″ / DN65 | Yes | Class 150 / PN16 | 300 | U5122 |
| 3″ / DN80 | Yes | Class 150 / PN16 | 300 | U5123 |
| 4″ / DN100 | Yes | Class 150 / PN16 | 300 | U5124 |
| 6″ / DN150 | Yes | Class 150 / PN16 | 300 | U5125 |
| 8″ / DN200 | Yes | Class 150 / PN16 | 300 | U5126 |
| 10″ / DN250 | Yes | Class 150 / PN16 | 300 | U5127 |
| 12″ / DN300 | Yes | Class 150 / PN16 | 300 | U5128 |
| 14″ / DN350 | Yes | Class 150 / PN16 | 300 | U5129 |
| 16″ / DN400 | Yes | Class 150 / PN16 | 300 | U5130 |
| 18″ / DN450 | Yes | Class 150 / PN16 | 300 | U5131 |
| 20″ / DN500 | Yes | Class 150 / PN16 | 300 | U5132 |
Note:
1. * Anti-vortex plate assembly with accessories: Includes the anti-vortex plate, a long radius 5D elbow, two (2) mating slip-on flange, two (2) sets of mating fasteners (bolt, nut, washer), and two (2) mating gaskets. And the accessories are available supplied either as a complete set or partially.
2. For flanged connection, it is available with ANSI B16.1 Class 125 / 250, B16.42 Class 150 / 300, EN 1092-2 PN10 / PN16 / PN25, etc.
3. It can be customized as per customer request.
