Fire Hose Cabinet
- Standard: BS 5041, UL 47, NFPA 14
- Capacity: Hose rack assembly + landing valve
- Mounting: Wall surface / recessed
- Surface: Red powder coating / bright SS
Why Choose Us?
- Satisfaction Guaranteed
- No Hassle For Return
- Cash on Delivery
Description

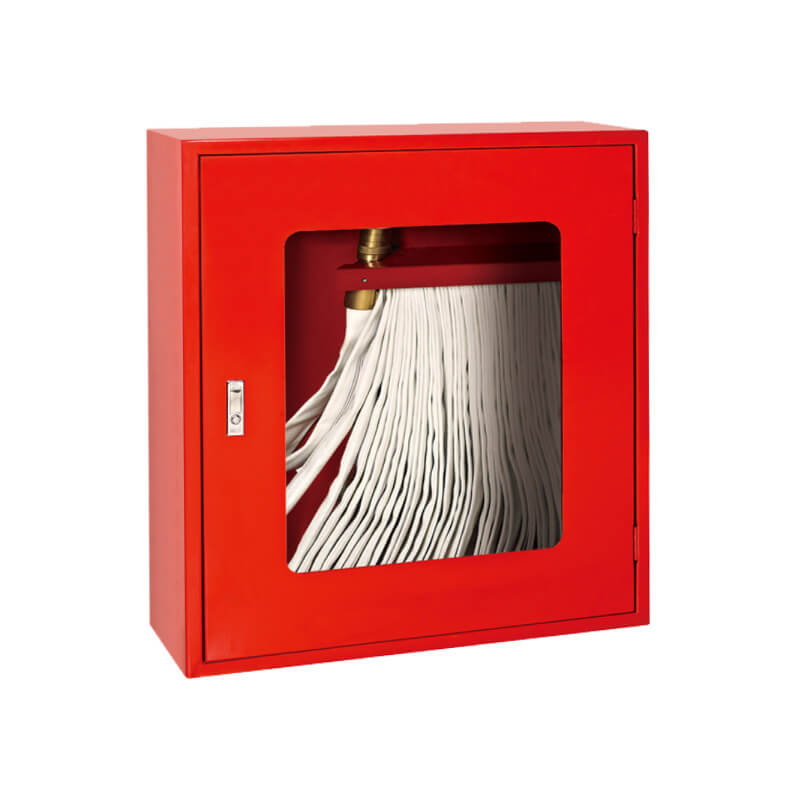

Combined hose rack and landing valve cabinet has both American and British standard feature. It incorporates a full set of UL listed & FM approved fire hose rack assembly and a LPCB approved oblique landing valve.
Available size
| Content | Configuration | Capacity | Dimension W x H x D (mm) | Ref. No. |
|---|---|---|---|---|
| Rack assembly | / | 1.5″ x 30m | 700 x 800 x 200 | FE9301 |
| Rack assembly + threaded oblique landing valve | Top + bottom | 1.5″ x 30m + DN 65 | 700 x 1200 x 250 | FE9302 |
| Rack assembly + threaded oblique landing valve | Right + left | 1.5″ x 30m + DN 65 | 900 x 800 x 250 | FE9303 |
| Rack assembly + flanged oblique landing valve | Top + bottom | 1.5″ x 30m + DN 65 | 700 x 1200 x 280 | FE9304 |
| Rack assembly + flanged oblique landing valve | Right + left | 1.5″ x 30m + DN 65 | 900 x 800 x 280 | FE9305 |
| Rack assembly, 30″ x 30″ x 6″ | / | As customized | 762 x 762 x 152 | FE9306 |
| Rack assembly, 30″ x 30″ x 8″ | / | As customized | 762 x 762 x 203 | FE9307 |
| Rack assembly + threaded oblique landing valve | / | As customized | 750 x 950 x 220 | FE9308 |
Note:
1. For recessed type, it contains projection trim on the external face of cabinet with width 38mm.
2. For detailed components of rack assembly, please see TPMC catalog for F3015.
